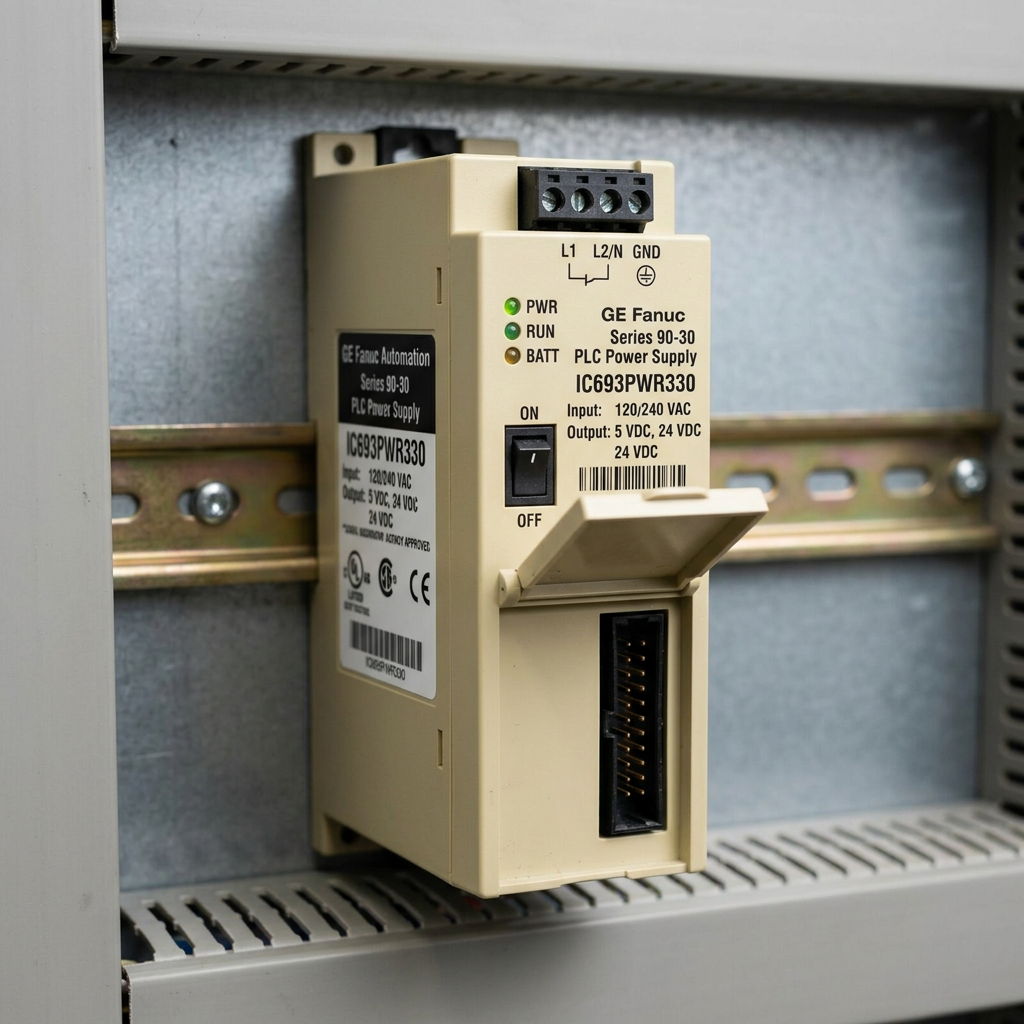

How the GE Fanuc IC693PWR330 Ensures Stable, Reliable Operation of Series 90-30 PLC Systems

In industrial automation, system reliability begins with clean, consistent power delivery. As the high-capacity power supply unit for the widely deployed GE Fanuc Series 90-30 programmable logic controller platform, the IC693PWR330 plays a foundational role in protecting CPU modules, I/O cards, and communication interfaces from power anomalies that can cause unexpected shutdowns, data corruption, or permanent hardware damage.

Engineered for demanding factory floor conditions, the IC693PWR330 combines universal input compatibility, robust electrical protection, and precise voltage regulation to deliver uninterrupted backplane power for single-rack and multi-rack Series 90-30 installations. For manufacturing lines, material handling systems, and process control applications where downtime carries significant financial cost, this power module is a critical component for long-term system stability.

Why Power Supply Quality Defines PLC System Reliability

Programmable logic controllers operate as the central brain of industrial automation systems, executing real-time control logic and coordinating field devices. Even brief power fluctuations — including voltage sags, surges, and momentary interruptions — can trigger logic errors, lost production data, unexpected equipment restarts, and shortened component lifespan.

The IC693PWR330 addresses these risks through a switch-mode power conversion architecture optimized for industrial environments, delivering tightly regulated output voltages with built-in fault tolerance that keeps Series 90-30 systems running reliably through grid disturbances and harsh operating conditions.

IC693PWR330 Core Technical Specifications

The table below summarizes the key electrical, mechanical, and environmental specifications of the GE Fanuc IC693PWR330 high-capacity power supply module.

Key Design Features That Deliver System Stability

1. Universal Wide-Range Input with Global Compatibility

The IC693PWR330 accepts a broad input voltage range spanning 85 to 264 VAC as well as 100 to 300 VDC, eliminating the need for voltage selection jumpers or model changes when deploying equipment across different regions. This universal input also provides inherent resilience against brownouts and low-voltage grid conditions, maintaining stable output even when incoming supply voltage drops well below nominal levels.

2. 20ms Holdup Time for Ride-Through of Momentary Interruptions

A 20-millisecond minimum holdup time is one of the module’s most important reliability features. During brief power glitches, voltage sags, or contactor switching transients, the power supply maintains regulated output voltages long enough for the PLC CPU to continue execution without tripping or losing program state. This prevents costly process restarts and eliminates the need for external uninterruptible power supplies in many standard applications.

3. Multi-Layer Electrical Protection Safeguards Entire Rack

The module integrates comprehensive protection circuitry that shields both itself and all connected Series 90-30 modules from electrical damage:

• Overvoltage protection clamps output voltages to safe levels to prevent component damage during regulation faults.
• Overcurrent and short-circuit protection automatically limits output current if a module or field wiring fault creates an overload condition.
• Overtemperature protection reduces power output or initiates a controlled shutdown if internal temperatures exceed safe operating limits.
• Input fuse protection isolates the unit from catastrophic upstream electrical faults.

4. Tight Voltage Regulation for Consistent Logic Performance

Precise switch-mode regulation maintains the +5 VDC logic supply within tight tolerance bands across the full load and temperature range. Stable logic voltage ensures consistent CPU execution speed, reliable memory operation, and accurate I/O signal processing — eliminating intermittent faults and communication errors caused by voltage drift.

5. Integrated Status Diagnostics for Rapid Troubleshooting

Front-panel LED indicators provide at-a-glance visual confirmation of power supply health, enabling maintenance technicians to quickly identify power-related faults during system commissioning or downtime events. Clear power-OK and fault signaling reduces mean time to diagnose (MTTD) and isolates power issues from logic program or I/O module failures.

6. Dual 24 VDC Output Rails for Flexible Field Power

In addition to the 5 VDC backplane logic supply, the IC693PWR330 provides both relay-grade 24 VDC and isolated 24 VDC outputs. This dual-rail design supports relay output modules directly and can also supply limited field power to input devices and sensors, reducing the need for separate external power supplies and simplifying cabinet wiring.

Operational Benefits for Industrial End Users

Reduced Unplanned Downtime

By riding through momentary power interruptions and protecting against common electrical disturbances, the IC693PWR330 significantly reduces the frequency of PLC-related production stops. This translates directly to higher overall equipment effectiveness (OEE) and lower production loss costs.

Extended Hardware Service Life

Clean, protected power delivery minimizes electrical stress on CPU modules, I/O cards, and communication modules. Systems powered by IC693PWR330 units typically exhibit longer service intervals and lower annual hardware replacement rates compared to installations with low-quality or undersized power supplies.

Simplified Global Deployment

Universal input voltage and international safety certifications allow the same part number to be standardized across facilities worldwide, simplifying spare parts inventory management and reducing engineering documentation overhead for multinational manufacturers.

Scalable Rack Configurations

With 30 watts of total output capacity, the IC693PWR330 supports fully populated 10-slot Series 90-30 racks with a mix of CPU, I/O, and specialty modules. This high-capacity rating gives system designers flexibility to expand I/O count and add communication modules without upgrading the power supply.
